Rear Disc Brake Adapter Kit - Honda Prelude / Accord / Civic / Quintet

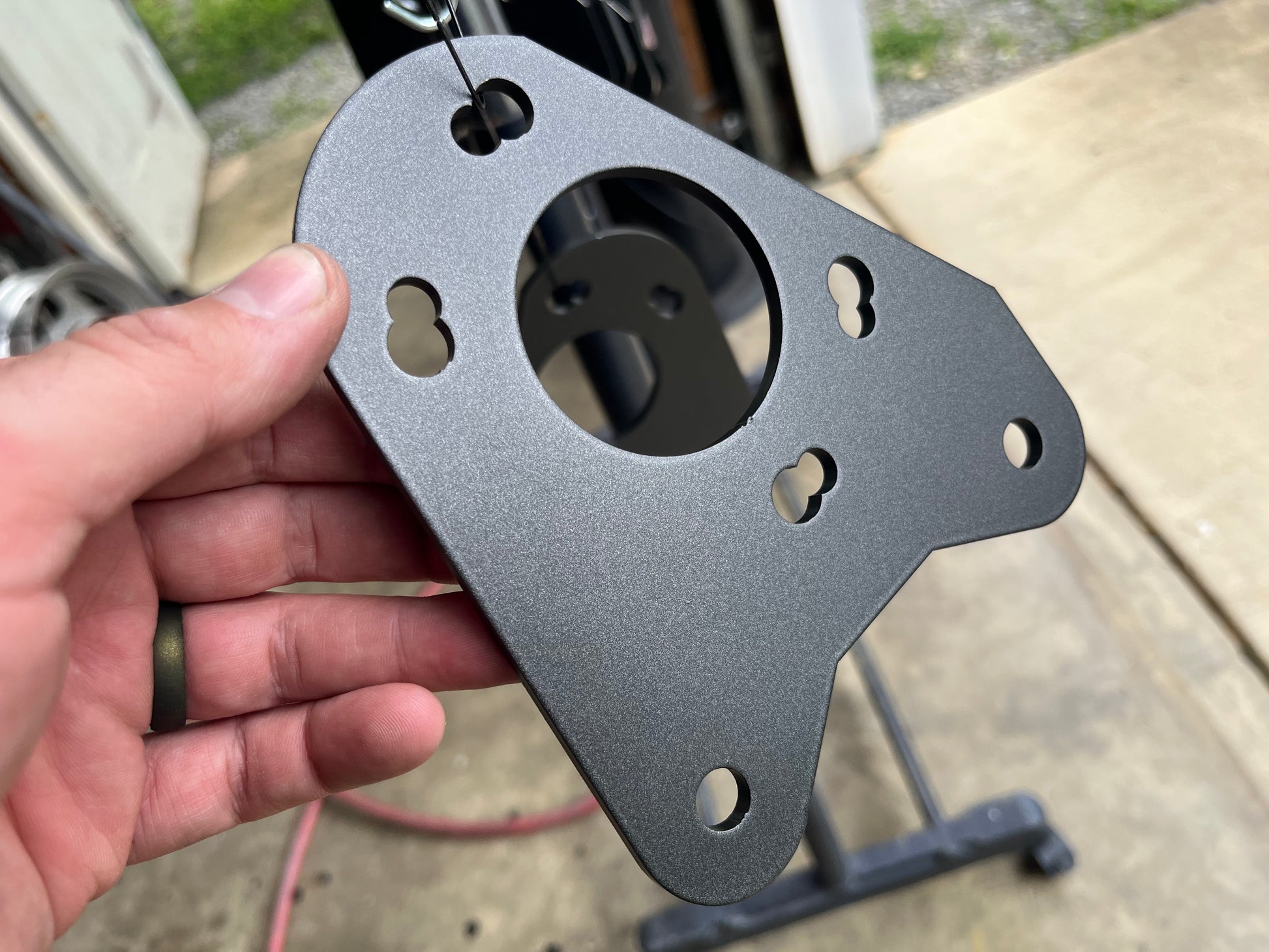

These are custom laser cut rear disc brake adapters for select Honda models (listed below). They were CAD designed in cooperation with Richard Voaden (MR.X) and are an 100% bolt-on option to convert your existing drum setup to a disc setup. These adapters will allow you to utilize a stock 2nd generation 1984-1987 Prelude rear disc rotor (9.4" Dia) alongside a combination of rear Honda/Acura calipers from the 90's. Commonly installed rear calipers that will bolt on to this kit are sourced from a 1994-2001 Integra (except Type-R), 1992-2000 Civic (model depending) and/or the 1995-1997 Del Sol Si style.

Kit fits the following model Honda cars:

• 1979-1982 Honda Prelude (3dr/4dr)
• 1983-1987 Honda Prelude (2dr)
• 1976-1981 Honda Accord (3dr/4dr)
• 1982-1985 Honda Accord (3dr/4dr)
• 1980-1983 Honda Civic (3dr/4dr/Wagon)
• 1980-1985 Honda Quint/Quintet

Included in Kit:

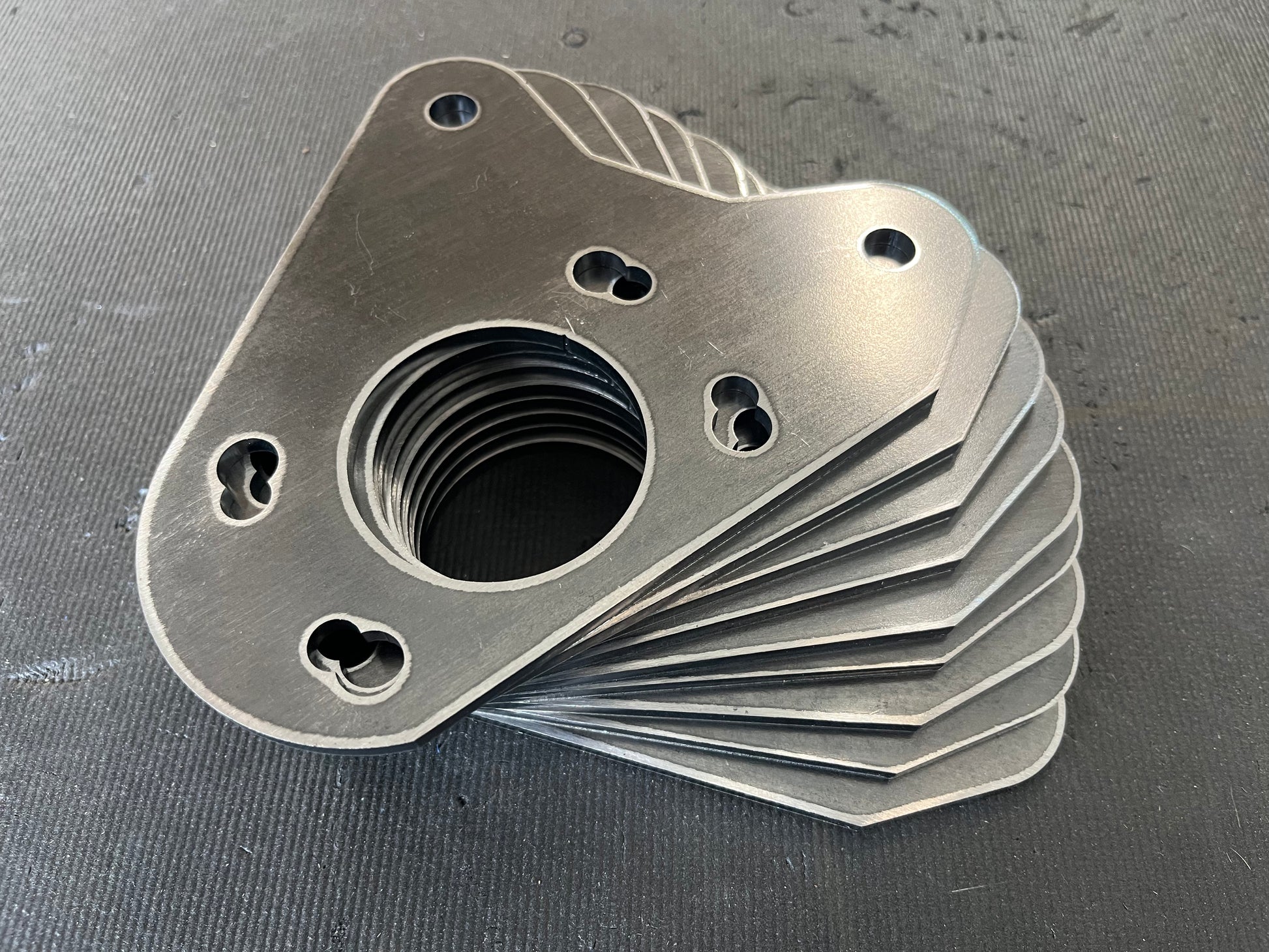

• (2) Powder Coated Brake Adapters, Laser Cut A36 HR Steel
• (4) New M10x1.5 x 30, JIS Grade 10.9 Zinc Bolts (fits 79-83 Prelude & 80-83 Civic Models ONLY)
• (1) Tube of 271 Red Thread Locker Loctite (2ml)
• QR Code For Website Installation Instructions & Pics

Parts Needed For Installation:

• (4) New Spindle Mounting Bolts
  • M10x1.5-30, JIS Grade 10.9 / '79-83 Prelude & '80-83 Civic Models (Included In Kit)
  • M8x1.25-30, JIS Grade 10.9 / '83-87 Prelude & '76-85 Accord Models (Not Included in Kit)
• (2) M10x1.5-25, JIS Grade 10.9 Caliper Bracket Mounting Bolts
• (2) New or Reman'd Rear Brake Calipers From Select Models:
  • USDM Acura Integra 2dr/4dr '94-01 (All Models except Type R)
  • USDM Honda Civic 2dr Si '99-00
  • USDM Honda Civic 3dr Si '92-94
  • USDM Honda Civic 2dr/4dr EX ABS '92-95
  • USDM Honda Del Sol Si '95-97
• (2) 1984-1987 Honda Prelude Rear Disc Rotors (9.4"Dia)
• (8) 1984-1987 Honda Prelude 12mm Threaded Wheel Studs
• (8) 1984-1987 Honda Prelude 12mm Lug Nuts
• (2) New Inner Wheel Bearings with Races
• (2) New Outer Wheel Bearings with Races
• (2) Hub Outer Seals
• (2) M4x25 Split Cotter Pin or Equivalent
• (2) New Rear Brake Lines (USDM '94-01 Integra Models are ideal)

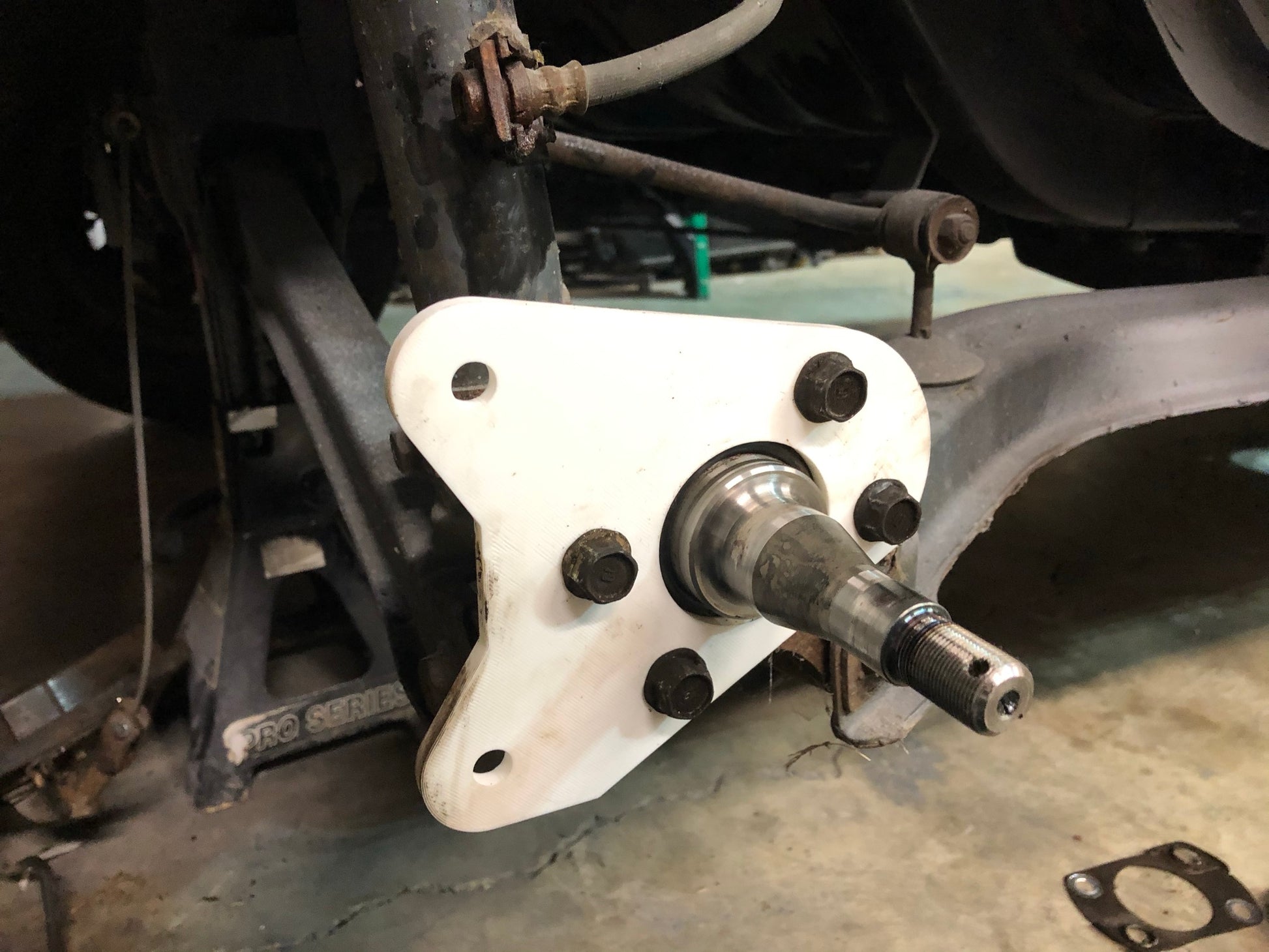

Each kit is shipped USPS Priority standard and will include basic installation instructions alongside supplemental part diagrams. It will list out everything you will need to do the conversion. The adapter was designed to be a multi-fit with two hole patterns for different spindle bolt spacings. This setup adds roughly a 1cm to the rear wheel mounting position from stock.

*NOTE, kits do not include the rear emergency brake cable adapters. You will not have function of your rear emergency brake if you install my kit. To use the rear emergency brakes, you will need to make a custom bracket or utilize the 1982-1983 Civic / 1982 Prelude Rear factory OEM cable adapters for these years only and modify them. I will have these listed in my installation instructions showing you how to do show. I'm currently working on an alternative adapter. If you purchase one of my kits, I can supply you adapters free of charge once they are available.

*NOTE, all adapters are bulk ordered and if inventory is currently OUT OF STOCK, I will do my best in contacting you when the next batch is available. Please be patient as restock the store.

PLEASE READ: I take absolutely NO RESPONSIBILITY for any damages or injuries caused/created by the improper installation to the vehicle with my kit. Install my kits at your own risk. The purchaser and vehicle owner are 100% responsible for correctly torquing all the necessary bolts and fittings to factory OEM spec, also per the vehicles manufacturer notes, making sure everything is tight, secure and safe before attempting to drive. Please make sure to follow all instructions per vehicle manufacturer and included with the adapters. Please drive safe and responsibly!
